Getting Started with Bluetooth Low Energy (BLE) on Android

1. Why BLE Matters in the Android World

So, you want to dive into the world of Bluetooth Low Energy (BLE) on Android? Excellent choice! BLE has become a cornerstone of modern mobile development, enabling devices to communicate with each other using minimal power. Think smartwatches, fitness trackers, proximity sensors — all rely on BLE to function efficiently. Learning how to implement BLE in Android opens doors to creating some pretty cool and useful apps.

Before we get our hands dirty with code, let's clarify what makes BLE special. Unlike classic Bluetooth, BLE is designed for low-power, intermittent data transfers. This makes it ideal for applications where battery life is paramount. Imagine a medical device that continuously monitors a patient's heart rate; BLE allows it to transmit data without draining the battery in a matter of hours. That's the kind of power we're talking about.

Now, Android provides a robust API for working with BLE, but navigating it can sometimes feel like trying to assemble furniture without instructions. Don't worry, though! We'll break down the essential steps and provide clear explanations to help you get up and running quickly. We'll cover everything from scanning for devices to establishing connections and exchanging data.

Essentially, mastering BLE in Android will allow you to create applications that seamlessly connect to a vast ecosystem of devices, enriching the user experience and solving real-world problems. It's a valuable skill that's only becoming more relevant as the Internet of Things (IoT) continues to expand. So, buckle up, and let's begin our BLE adventure!

2. Preparing Your Android Project

Alright, before we dive into the code-slinging, we need to make sure your Android project is properly set up for BLE development. This involves a few crucial steps: declaring the necessary permissions in your AndroidManifest.xml file and ensuring that the device actually supports BLE.

First, open your AndroidManifest.xml file. This is where you tell the Android system what capabilities your app needs. For BLE, you'll need the following permissions:

• `android.permission.BLUETOOTH` — Allows you to perform basic Bluetooth operations, such as connecting and accepting connections.
• `android.permission.BLUETOOTH_ADMIN` — Allows you to discover Bluetooth devices and request Bluetooth access.
• `android.permission.ACCESS_FINE_LOCATION` — Required for Bluetooth scanning on Android 6.0 (API level 23) and higher, as BLE beacons can be used for location services.
• `android.permission.BLUETOOTH_CONNECT` — Allows connecting to paired Bluetooth devices (Android 12 and higher)
• `android.permission.BLUETOOTH_SCAN` — Allows the app to scan for Bluetooth devices (Android 12 and higher)

Make sure to add these permissions inside the `` tag but outside the `` tag in your manifest file.

Next, it's a good idea to check if the device actually supports BLE. You can do this programmatically in your app using the `PackageManager`. Here's how:

PackageManager pm = getPackageManager();boolean hasBLE = pm.hasSystemFeature(PackageManager.FEATURE_BLUETOOTH_LE);if (!hasBLE) {    // BLE is not supported on this device    Toast.makeText(this, "BLE is not supported on this device", Toast.LENGTH_SHORT).show();    finish(); // Close the activity or disable BLE-related features}

This snippet checks if the device has the `FEATURE_BLUETOOTH_LE` system feature. If it doesn't, you can display a message to the user and gracefully disable any BLE-related functionality in your app. This ensures a smooth user experience, even on devices that don't support BLE. These initial steps are crucial to avoid unexpected errors and ensure compatibility across different Android devices.

Scanning for BLE Devices

3. Initiating the Scan

Now that our project is prepped, let's get to the fun part — scanning for BLE devices! This is where your app starts actively looking for nearby BLE peripherals that it can connect to.

The scanning process on Android involves using the `BluetoothLeScanner` class, which is part of the `android.bluetooth` package. To get an instance of the scanner, you'll first need a `BluetoothAdapter`, which represents the device's Bluetooth radio. Here's the basic setup:

BluetoothManager bluetoothManager = (BluetoothManager) getSystemService(Context.BLUETOOTH_SERVICE);BluetoothAdapter bluetoothAdapter = bluetoothManager.getAdapter();BluetoothLeScanner bluetoothLeScanner = bluetoothAdapter.getBluetoothLeScanner();

With the `BluetoothLeScanner` in hand, you can start the scanning process. This involves calling the `startScan()` method with a `ScanCallback`. The `ScanCallback` is an interface that defines methods for handling scan results and scan failures.

Here's a simplified example of how to start a BLE scan:

ScanCallback leScanCallback = new ScanCallback() {    @Override    public void onScanResult(int callbackType, ScanResult result) {        // Handle scan result here (e.g., add the device to a list)        BluetoothDevice device = result.getDevice();        String deviceName = device.getName();        String deviceAddress = device.getAddress();        // Do something with the device information        Log.d("BLE", "Device found: " + deviceName + " (" + deviceAddress + ")");    }    @Override    public void onScanFailed(int errorCode) {        // Handle scan failure here        Log.e("BLE", "Scan failed with error code: " + errorCode);    }};bluetoothLeScanner.startScan(leScanCallback);

This code snippet sets up a `ScanCallback` that logs the name and address of any BLE devices it finds. It then starts the scan using `startScan()`. Remember that scanning consumes battery power, so it's important to stop the scan when you're done. To stop the scan, simply call `stopScan()` with the same `ScanCallback` instance:

bluetoothLeScanner.stopScan(leScanCallback);

Always remember to include proper error handling within the `onScanFailed` method to catch potential issues like Bluetooth being disabled or location services being turned off. These are frequent causes of scan failure and handling them gracefully can improve the user experience considerably.

4. Filtering Scan Results

Sometimes, you might only be interested in scanning for specific types of BLE devices. For example, you might only want to find devices that advertise a particular service UUID. This is where scan filters come in handy.

Scan filters allow you to specify criteria that a BLE device must meet in order to be included in the scan results. You can filter based on device name, MAC address, service UUIDs, and more.

To use scan filters, you need to create a `ScanFilter` object and a `ScanSettings` object. The `ScanFilter` specifies the filtering criteria, and the `ScanSettings` specifies the scanning parameters, such as the scan mode (e.g., low power, balanced, or aggressive).

Here's an example of how to create a scan filter that only finds devices that advertise a specific service UUID:

List filters = new ArrayList<>();ScanFilter filter = new ScanFilter.Builder()        .setServiceUuid(ParcelUuid.fromString("YOUR_SERVICE_UUID")) // Replace with your service UUID        .build();filters.add(filter);ScanSettings settings = new ScanSettings.Builder()        .setScanMode(ScanSettings.SCAN_MODE_LOW_POWER)        .build();bluetoothLeScanner.startScan(filters, settings, leScanCallback);

Replace `"YOUR_SERVICE_UUID"` with the actual UUID of the service you're interested in. The `setScanMode()` method allows you to adjust the scan mode to balance between power consumption and scan speed. Remember that more aggressive scan modes consume more battery.

By using scan filters, you can narrow down the scan results to only the devices you're interested in, improving the efficiency of your app and reducing battery consumption. This is especially useful in scenarios where you're dealing with a large number of BLE devices in the vicinity.

Connecting to a BLE Device

5. Establishing the Connection

So, you've scanned for BLE devices and found the one you want to connect to. Great! The next step is to establish a connection. This involves using the `BluetoothGatt` class, which represents a GATT (Generic Attribute Profile) connection to a BLE device.

To connect to a BLE device, you'll first need a `BluetoothDevice` object, which you should have obtained from the scan results. Then, you can call the `connectGatt()` method on the `BluetoothDevice` object, passing in a `BluetoothGattCallback`. The `BluetoothGattCallback` is an interface that defines methods for handling GATT events, such as connection status changes, service discovery, and data exchange.

Here's the basic code for connecting to a BLE device:

BluetoothDevice device = ...; // Get the BluetoothDevice object from the scan resultsBluetoothGattCallback gattCallback = new BluetoothGattCallback() {    @Override    public void onConnectionStateChange(BluetoothGatt gatt, int status, int newState) {        if (newState == BluetoothProfile.STATE_CONNECTED) {            // Device is connected            Log.i("BLE", "Connected to GATT server.");            // Discover services after successful connection            gatt.discoverServices();        } else if (newState == BluetoothProfile.STATE_DISCONNECTED) {            // Device is disconnected            Log.i("BLE", "Disconnected from GATT server.");        }    }    @Override    public void onServicesDiscovered(BluetoothGatt gatt, int status) {        if (status == BluetoothGatt.GATT_SUCCESS) {            // Services discovered successfully            Log.i("BLE", "Services discovered.");            // Now you can interact with the device's services and characteristics        } else {            Log.w("BLE", "onServicesDiscovered received: " + status);        }    }    // Add more callback methods for handling data exchange (see next section)};BluetoothGatt bluetoothGatt = device.connectGatt(this, false, gattCallback);

The `connectGatt()` method takes three parameters: the context, a boolean indicating whether to automatically reconnect if the connection is lost (usually set to `false`), and the `BluetoothGattCallback`. It returns a `BluetoothGatt` object, which you'll use to interact with the device.

In the `onConnectionStateChange()` callback, you can check the connection status. If the status is `BluetoothProfile.STATE_CONNECTED`, the device is connected, and you can proceed to discover the device's services. If the status is `BluetoothProfile.STATE_DISCONNECTED`, the device is disconnected, and you should handle the disconnection appropriately (e.g., display a message to the user or attempt to reconnect).

The `discoverServices()` method initiates the service discovery process, which retrieves the list of services and characteristics supported by the BLE device. Once the services are discovered, the `onServicesDiscovered()` callback is invoked, and you can start interacting with the device's services and characteristics.

6. Discovering Services and Characteristics

After successfully connecting to a BLE device, the next crucial step is to discover the services and characteristics offered by that device. Services are collections of characteristics that perform a specific function, while characteristics are individual data points or commands that you can read, write, or subscribe to.

As we saw in the previous section, the `discoverServices()` method initiates the service discovery process. Once the services are discovered, the `onServicesDiscovered()` callback is invoked. Inside this callback, you can retrieve the list of supported services using the `getServices()` method of the `BluetoothGatt` object.

Here's an example of how to retrieve the list of services and iterate over them:

@Overridepublic void onServicesDiscovered(BluetoothGatt gatt, int status) {    if (status == BluetoothGatt.GATT_SUCCESS) {        List services = gatt.getServices();        for (BluetoothGattService service : services) {            UUID serviceUuid = service.getUuid();            Log.i("BLE", "Service UUID: " + serviceUuid);            // Iterate over the characteristics of the service            List characteristics = service.getCharacteristics();            for (BluetoothGattCharacteristic characteristic : characteristics) {                UUID characteristicUuid = characteristic.getUuid();                Log.i("BLE", "  Characteristic UUID: " + characteristicUuid);            }        }    } else {        Log.w("BLE", "onServicesDiscovered received: " + status);    }}

This code snippet iterates over the list of services and characteristics, logging their UUIDs. You can then use these UUIDs to identify the specific services and characteristics you want to interact with. Each `BluetoothGattCharacteristic` object contains methods for reading, writing, and subscribing to notifications, which we'll cover in the next section.

When working with services and characteristics, it's important to consult the documentation for the specific BLE device you're connecting to. The documentation will tell you which services and characteristics are available, what their UUIDs are, and how to interact with them. Without this information, you'll be flying blind.

Exchanging Data with BLE Devices

7. Reading and Writing Characteristics

Once you've discovered the services and characteristics of a BLE device, you can start exchanging data with it. This involves reading and writing characteristic values. Reading a characteristic retrieves the current value of the characteristic from the device, while writing a characteristic sends a new value to the device.

To read a characteristic, you'll need a `BluetoothGattCharacteristic` object and the `readCharacteristic()` method of the `BluetoothGatt` object. Here's how:

BluetoothGattCharacteristic characteristic = ...; // Get the BluetoothGattCharacteristic objectbluetoothGatt.readCharacteristic(characteristic);

The result of the read operation is delivered to the `onCharacteristicRead()` callback method of the `BluetoothGattCallback` interface:

@Overridepublic void onCharacteristicRead(BluetoothGatt gatt, BluetoothGattCharacteristic characteristic, int status) {    if (status == BluetoothGatt.GATT_SUCCESS) {        // Read successful        byte[] value = characteristic.getValue();        // Process the received data        Log.i("BLE", "Characteristic value: " + Arrays.toString(value));    } else {        // Read failed        Log.w("BLE", "onCharacteristicRead received: " + status);    }}

The `onCharacteristicRead()` callback provides the `BluetoothGattCharacteristic` object and the `status` of the read operation. If the status is `BluetoothGatt.GATT_SUCCESS`, the read was successful, and you can retrieve the value of the characteristic using the `getValue()` method. The value is returned as a byte array, which you can then process according to the data format specified by the device's documentation.

To write a characteristic, you'll need a `BluetoothGattCharacteristic` object and the `writeCharacteristic()` method of the `BluetoothGatt` object. You'll also need to set the value of the characteristic before writing it. Here's how:

BluetoothGattCharacteristic characteristic = ...; // Get the BluetoothGattCharacteristic objectbyte[] value = ...; // Prepare the data to be writtencharacteristic.setValue(value);boolean success = bluetoothGatt.writeCharacteristic(characteristic);

Before writing the characteristic, it's important to check the properties of the characteristic to ensure that it supports writing. You can check the properties using the `getProperties()` method of the `BluetoothGattCharacteristic` object. If the characteristic supports writing with response, the `writeCharacteristic()` method will return `true` if the write was initiated successfully. The result of the write operation is delivered to the `onCharacteristicWrite()` callback method:

8. Enabling Notifications and Indications

Sometimes, you need to receive real-time updates from a BLE device whenever a characteristic value changes. This is where notifications and indications come in. Notifications and indications are mechanisms that allow a BLE device to send updates to a connected client without the client having to explicitly request them.

The main difference between notifications and indications is that indications require the client to acknowledge receipt of the data, while notifications do not. This makes indications more reliable but also more power-consuming. The choice between notifications and indications depends on the specific requirements of your application.

To enable notifications or indications for a characteristic, you'll first need to write the appropriate descriptor value to the characteristic's Client Characteristic Configuration Descriptor (CCCD). The CCCD is a special descriptor that controls whether notifications or indications are enabled for a characteristic.

Here's how to enable notifications for a characteristic:

BluetoothGattCharacteristic characteristic = ...; // Get the BluetoothGattCharacteristic objectBluetoothGattDescriptor descriptor = characteristic.getDescriptor(UUID.fromString("00002902-0000-1000-8000-00805f9b34fb")); // CCCD UUIDdescriptor.setValue(BluetoothGattDescriptor.ENABLE_NOTIFICATION_VALUE);bluetoothGatt.writeDescriptor(descriptor);

This code snippet retrieves the CCCD for the characteristic and sets its value to `BluetoothGattDescriptor.ENABLE_NOTIFICATION_VALUE`. Then, it writes the descriptor to the device using the `writeDescriptor()` method. To enable indications, you would set the descriptor value to `BluetoothGattDescriptor.ENABLE_INDICATION_VALUE` instead.

Once notifications or indications are enabled, the device will send updates to the `onCharacteristicChanged()` callback method whenever the characteristic value changes:

@Overridepublic void onCharacteristicChanged(BluetoothGatt gatt, BluetoothGattCharacteristic characteristic) {    // Characteristic value changed    byte[] value = characteristic.getValue();    // Process the received data    Log.i("BLE", "Characteristic value changed: " + Arrays.toString(value));}

Cleaning Up and Disconnecting

9. Releasing Resources

When you're finished interacting with a BLE device, it's crucial to properly disconnect and release any resources that you've acquired. This helps prevent memory leaks, battery drain, and other issues. Failing to clean up properly can lead to unexpected behavior and reduce the overall stability of your app.

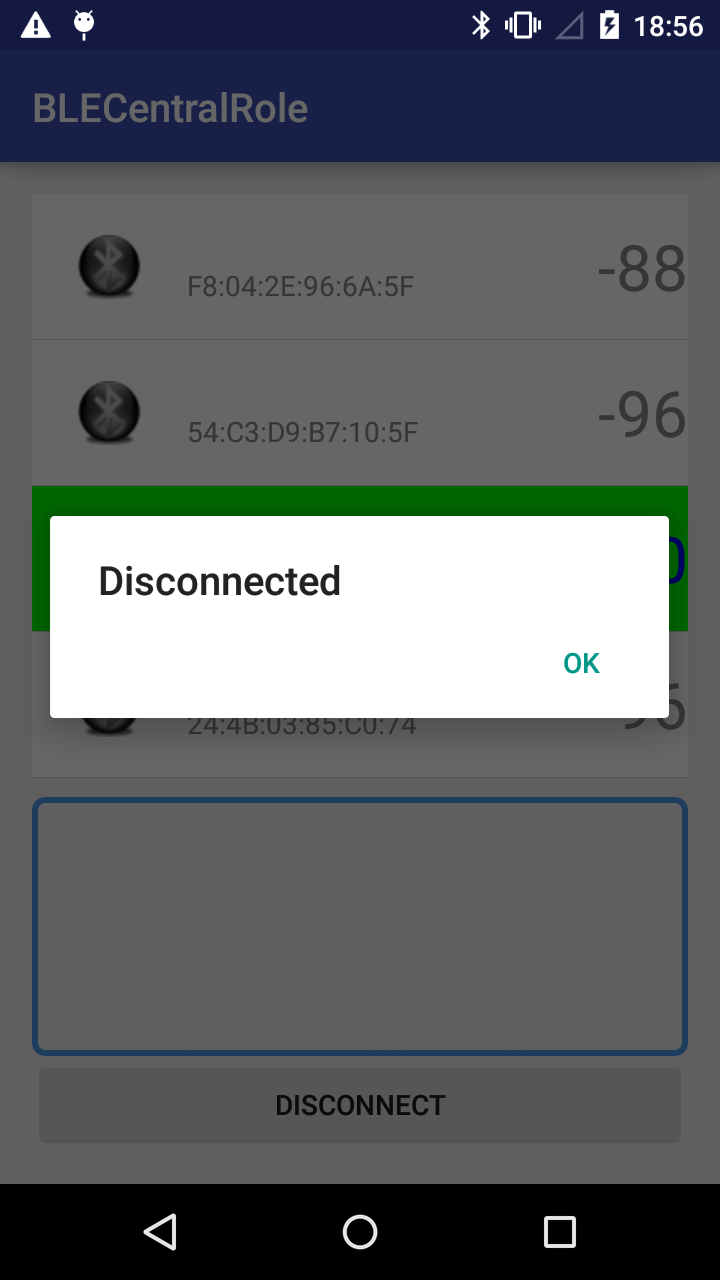

To disconnect from a BLE device, you'll need to call the `disconnect()` method of the `BluetoothGatt` object:

bluetoothGatt.disconnect();

This will initiate the disconnection process. However, it's important to note that the disconnection may not happen immediately. The `onConnectionStateChange()` callback method will be invoked when the disconnection is complete.

Once the device is disconnected, you should also release the `BluetoothGatt` object by calling the `close()` method:

bluetoothGatt.close();

The `close()` method releases any resources associated with the `BluetoothGatt` object, such as Bluetooth connections and GATT caches. It's important to call this method to prevent memory leaks.

In addition to disconnecting and releasing the `BluetoothGatt` object, you should also stop any active scans when you're no longer needed. As mentioned earlier, scanning consumes battery power, so it's important to stop the scan when you're done. This helps conserve battery life and prevent unnecessary drain on the user's device.

By following these steps, you can ensure that your app properly manages BLE connections and releases resources when they're no longer needed. This will help improve the stability, performance, and battery life of your app, providing a better user experience.
